SHOP

Linnet ZED-F9P L1/L2

200,00

Delivers centimeter level accuracy in seconds with a high precision Multi-band RTK GNSS module. Equipped with ZED-F9P receiver.

/!\ This product is also available in a Mosaic-X5 version, for even greater precision.

50 in stock

Category: Tags: , , , , , ,

Description

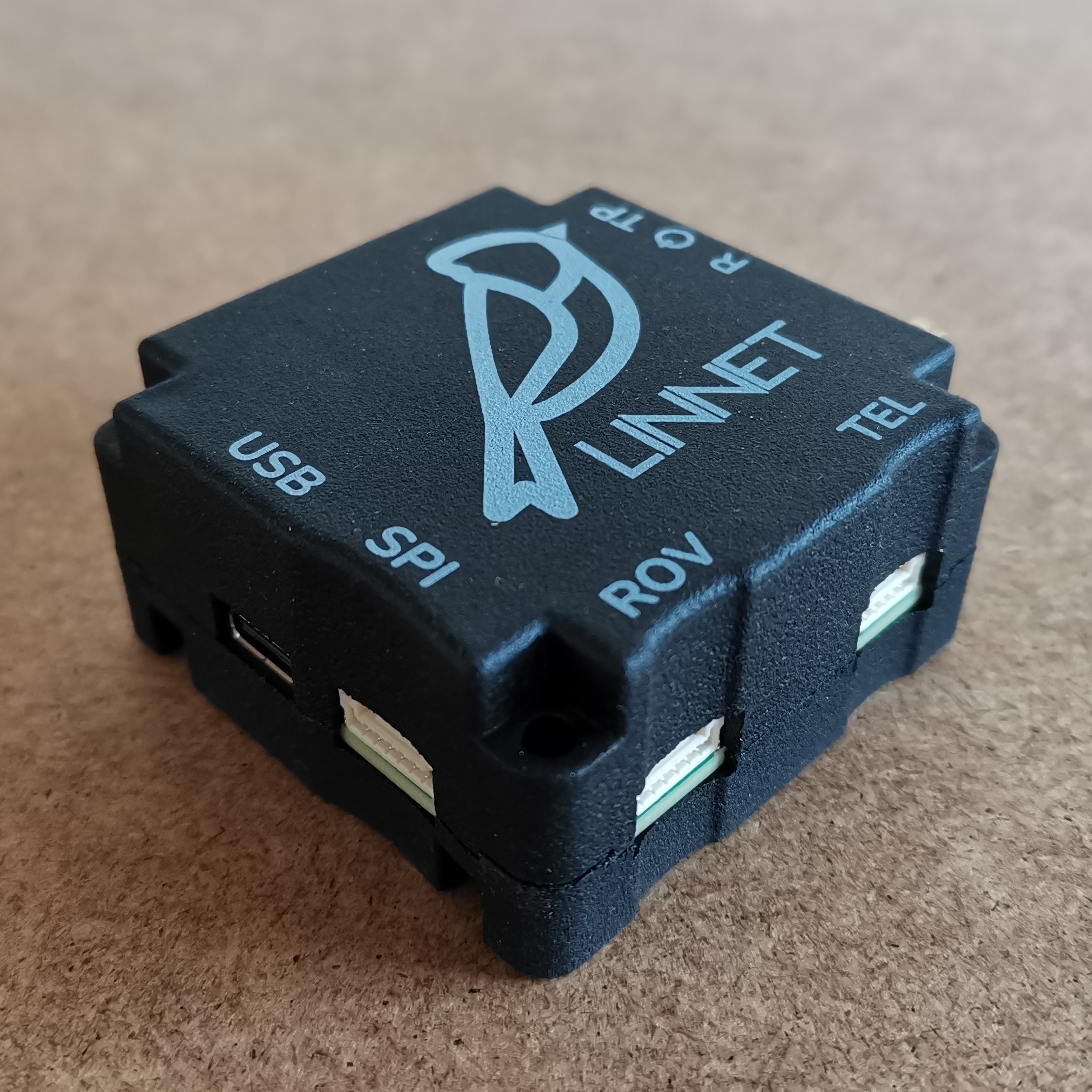

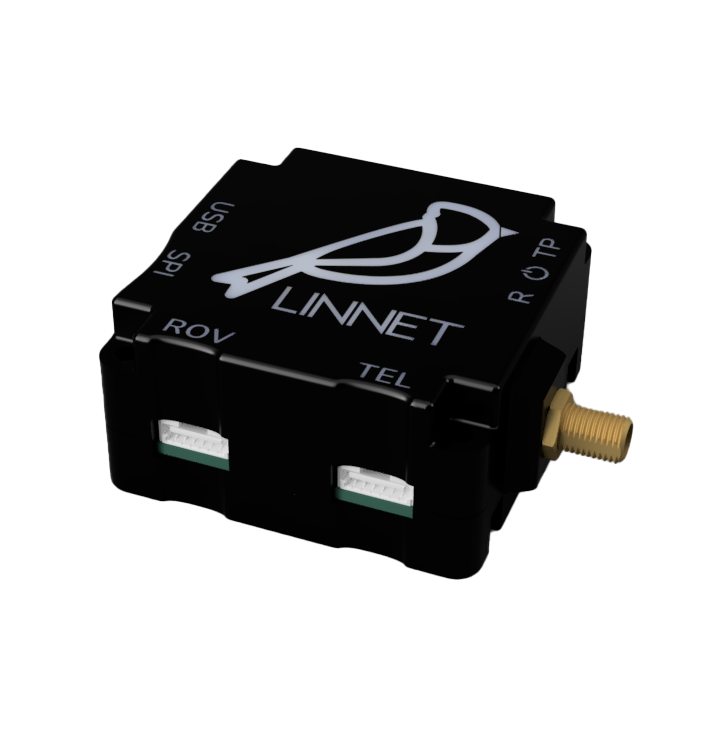

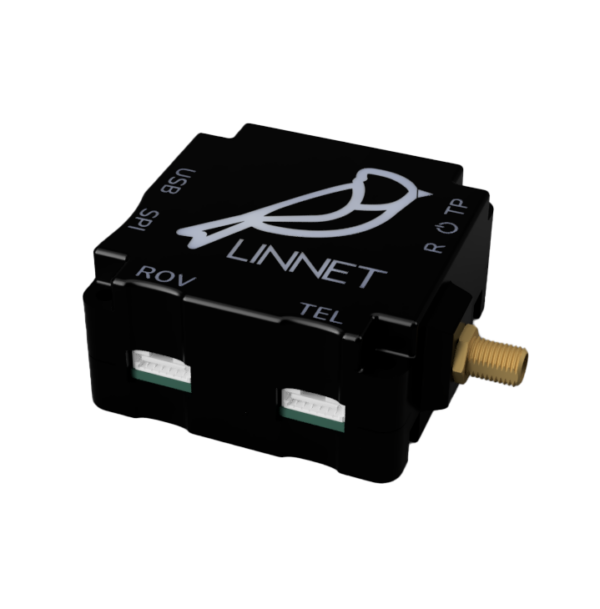

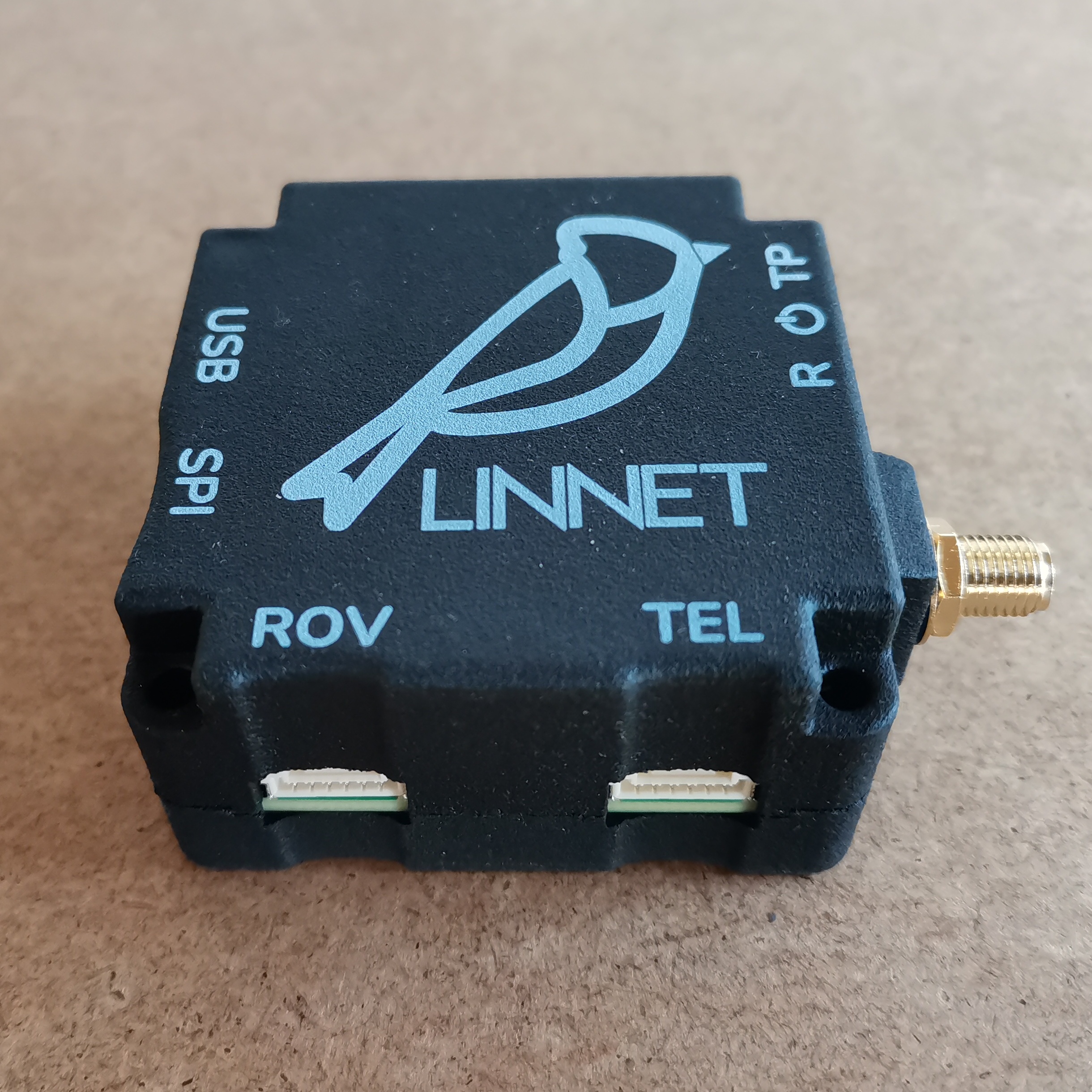

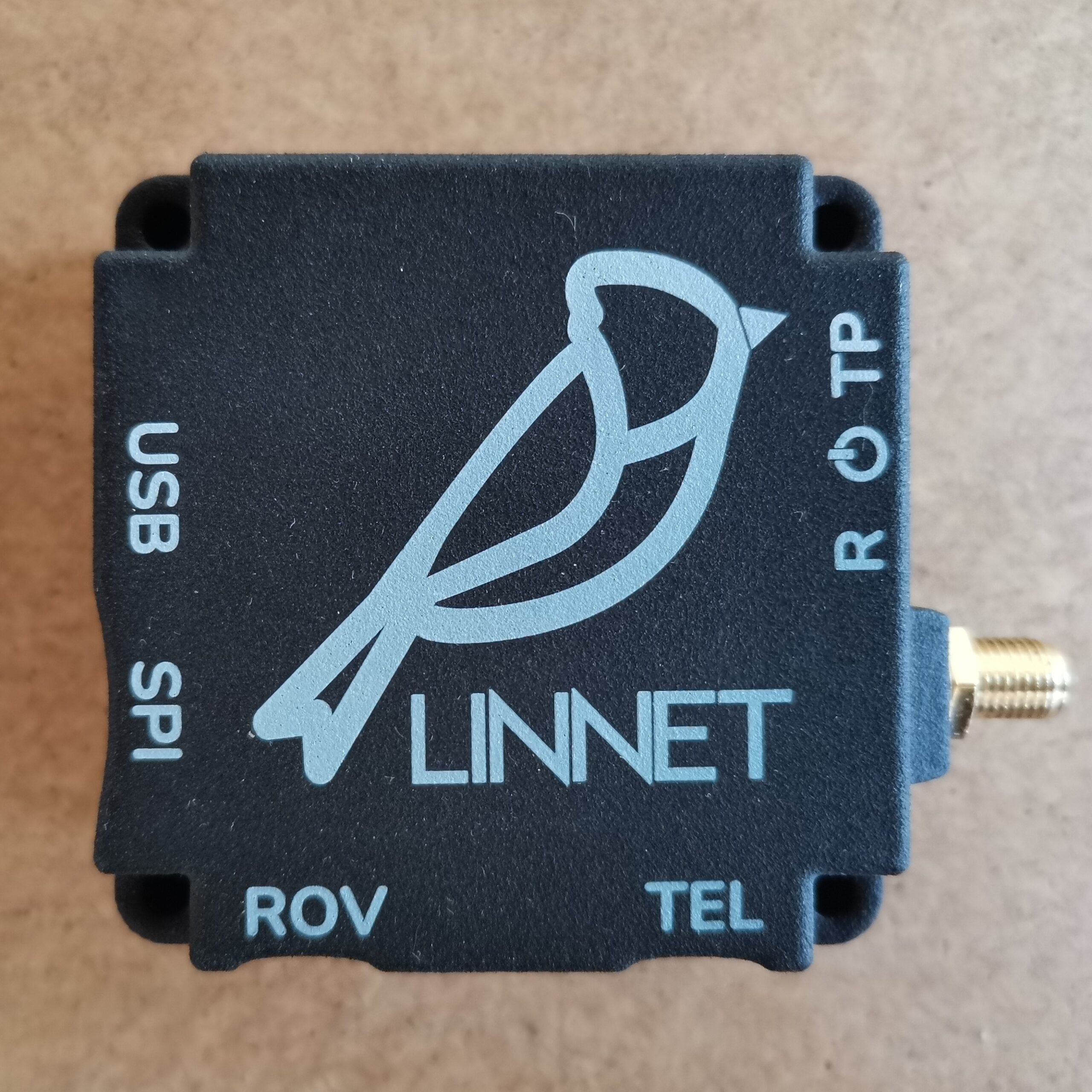

Linnet ZED-F9P | RTK Positioning Module

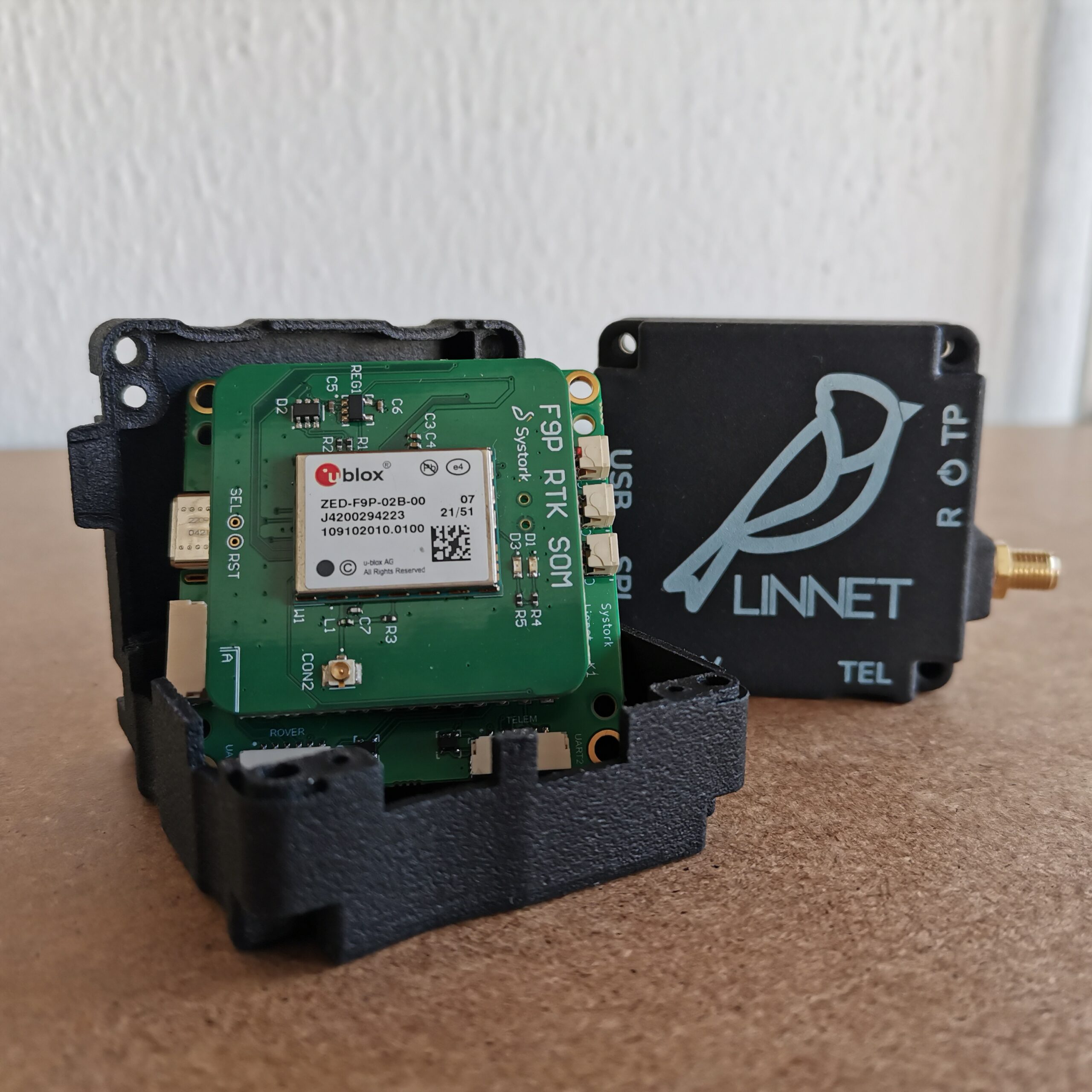

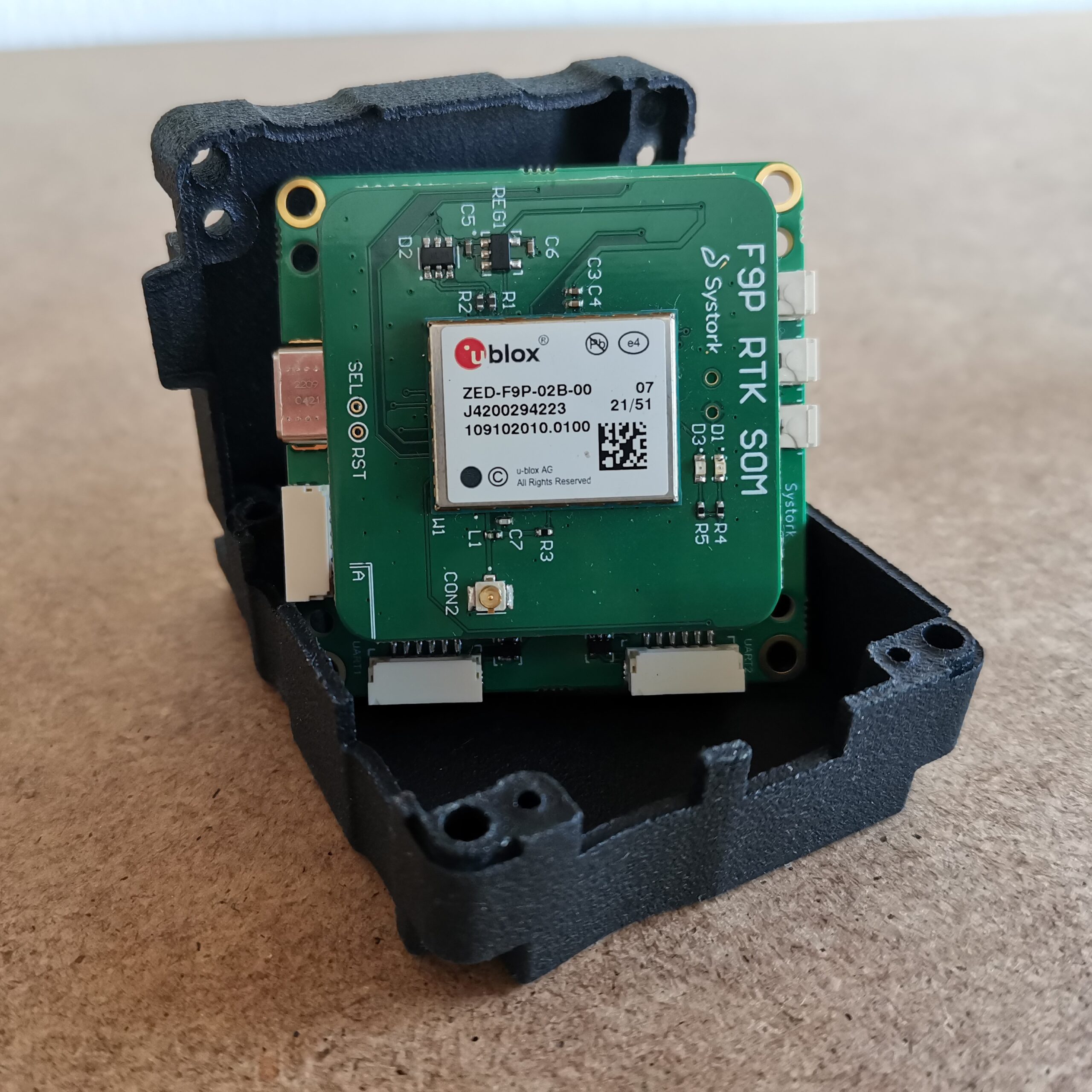

Linnet is a multi-band module, it features a U-Blox RTK ZED-F9P receiver platform. The ZED F9P includes built-in support for standard RTCM corrections, facilitating centimeter-level navigation. Linnet can be used both directly on the rover and as a base station. It benefits from receiving signals from all major constellations, including GPS, GLONASS, Galileo, BeiDou, and QZSS.

linnet rtk module

Key strengths:

  • RTK Precision: Achieve centimeter-level positioning accuracy.
  • Attain precise positioning even in low-coverage zone.
  • Various modern correction service technologies (RTCM v 3.x, SSR, PPP).
  • Equipped with USB-C connectivity, ensuring fast and reliable data transfer.
  • UART, SPI, I2C, USB communication modes.
  • Portable and Protected: Lightweight case included.
  • Made in France: we design and produce our products in our engineering office in France.

Linnet Applications

  • Industrial: Navigation and tracking, surveying
  • UAV: Autonomous navigation for unmanned vehicles
  • Robotics: Navigation systems for ground robotics
  • Agriculture and construction: Precision control for heavy machinery

Linnet ZED F9P facilitates accurate navigation and automation of moving machinery in industrial. It is also suitable for a wide range of personal applications tailored to individual customers.

Schema Linnet



Additional information

Weight 0,15 kg
Dimensions 5,25 × 6,61 × 2,64 cm
Case

With

GNSS

GPS L1/L2 & Glonass L1/L2 & Beidou B1/B2 & Galileo e1/e5

Working voltage

5V

Current consumption

~250mA

Communication interface

USB/UART/SPI/I2C

Datasheet

Download the Datasheet (pdf)
